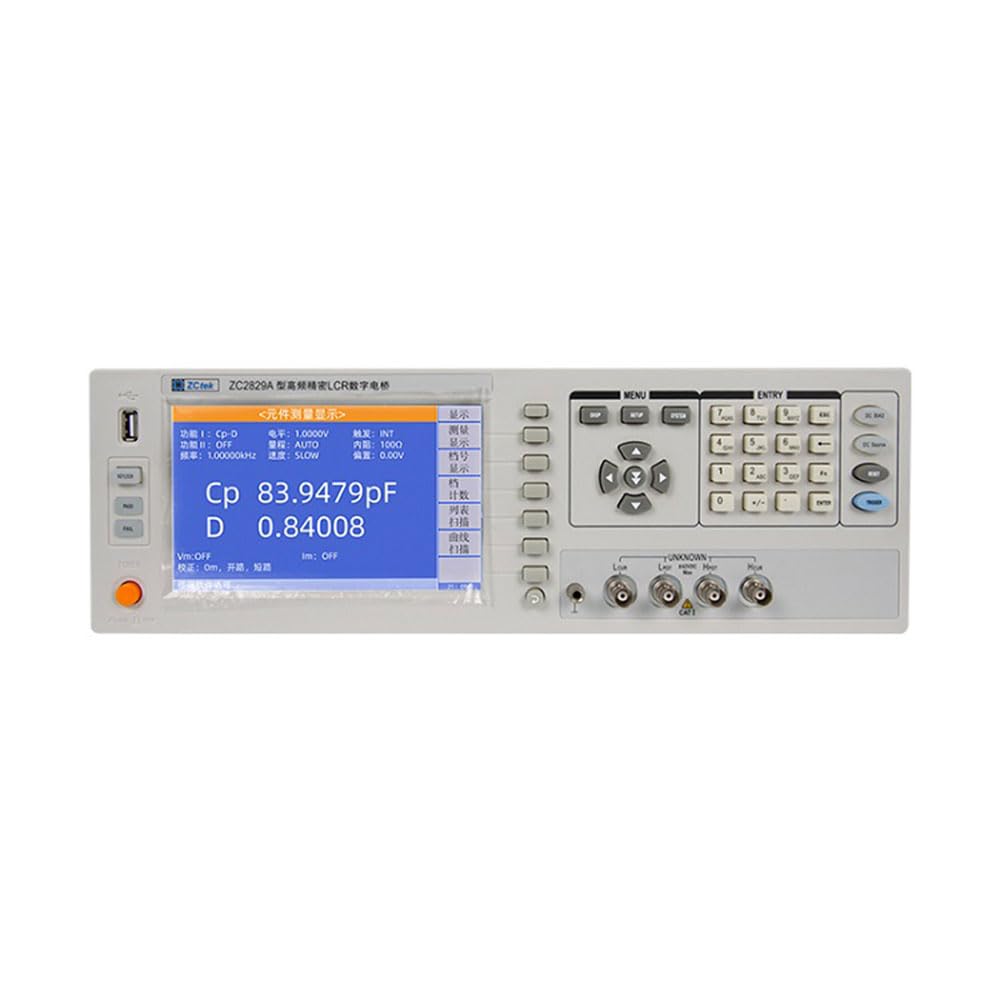

ZC2829A Digital LCR Meter 20Hz-200kHz Signal Level 5mV–2.0V, 1mV Step with 7 inch Color LCD Screen

ZC2829A series component tester is a new impedance measuring instrument with high accuracy, wide test range and 6-bit test resolution. The test frequency up to 500kHz, arbitrary programming in 0.01Hz steps, 5mV-2V signal level and DC built-in bias voltage, can meet the measurement requirements of most low-voltage parameters of the component, and can be widely used in inductors, capacitors, etc. Performance analysis of components. The HANDLER (optional), GPIB (optional), LAN, RS232C, and USB HOST interfaces provided by the instrument provide sufficient conditions for the instrument to be used in the component automatic sorting system, to communicate with the computer, and to record the test process.

• 7-inch 16:9 color LCD display, resolution 800RGB*480;Simple and elegant appearance design, flexible and convenient panel operation
• The highest test frequency is 500kHz, the resolution is 10mHz;Wide signal amplitude range 5mV-2Vrms, resolution 1mV
• Four signal source output impedance;List scan test function;Save 20/40 groups of setting files in the machine, and save the setting files of external U disk
• Multiple interface modes support host computer communication;Support the networking of multiple instruments through the LAN interface
• Memory:20 groups of LCRZ instrument setting file memory,40 sets of scan setting file memory
