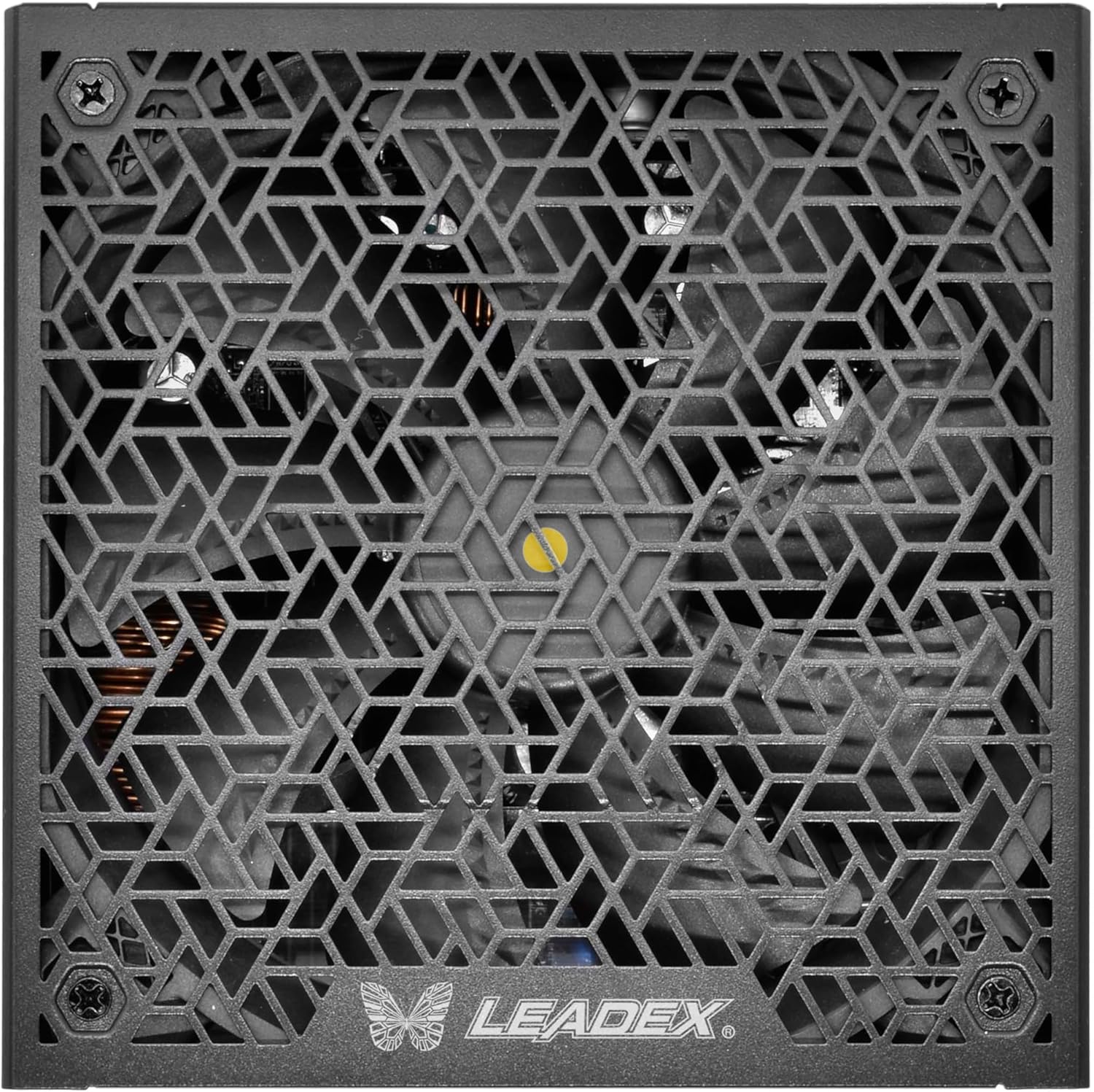

Super Flower Leadex VII XP PRO 1000W 80+ Platinum, Cybenetics Platinum, Full Modular, ATX 3.1 & PCIe 5.0, W/12VHPWR (2x8pin-16pin Native Cables), FDB Fan, SF-1000F14XP, Black

LEADEX VII Platinum PRO is fully compatible with Intel ATX 3.1 Specifications, supporting up to 200% power excursion. HCS terminals & Dual Patented 9-Pin Super Connector on the modular panel to 12+4 pin socket on GPU side, safer design to avoid high angle bending issue. Modern Design to meet the latest safety & PC requirement with IEC/EN 62368 & ALPM mode. ★ 140mm F.D.B Fan: Unique blade design for high airflow and more stable cooling system and provides accurate RPM thus minimizing the noise (dBA). ★Copper shaft around the bearing which provides stability and durability during operation thus better heat dissipation and longer life span. ★ New patented Universal SUPER CONNECTOR(Patent No.: Taiwan D196948 D196949 ; China CN304998083S) Universal Super Connectors with a patent allows you to plug CPU, PCI-E and peripherals freely in any of the 9pin socket provided. ★ New patented technology of Buckle (20+4) Pin connector(Patent No.: Taiwan M563575 ; China 7566010) ★ Innovative Design for gaming System & PSU protection 1. DC output +12V/+5V/+3.3V remain stable 2. Dynamic loading (Transient response) improvement on +12V/+5V/+3.3V 3. +12V Output With Exceptional Low Ripple Measurements 4. Low Output Voltage Ripple ★ ECO-design 1. Auto & ECO Fan Control 2. High efficiency on all rails, including 5VSB ★ 100% Fully Modular With All Ultra Flexible Ribbon Cables For Easy Cable Management. ★ 80 PLUS® Platinum Certified,90% 92% 89% Efficiency At 20% 50% 100% Rated Load. ★ 100% Japanese 105°C Capacitors (Main Board & Modular Backpanel) ★ Full Range Auto Voltage Detection Design 100V~240V (Active PFC) ★Comply With ATX 12V v3.1, EPS 12V v2.92 Specification. ★ Comply With Energy Star Standard & EuP (Energy Using Products) Regulation ★ Over Voltage Protection / Over Current Protection / Over Power Protection / Short Circuit Protection / Under Voltage Protection / Over Temperature Protection / No Load Operation / Surge & Inrush Protection ★ Support All Intel / AMD Multi-Core CPU & ATX / BTX Compatible Motherboards (Haswell ready) ★ Support NVIDIA® SLI™ & ATI CrossFireX™ High Performance Graphic Card ★ More than 2,000 times On/Off test ★ Lead-free Green Materials with RoHS / WEEE Compliance ★ Perfect For Professional & High Performance Gaming System ★ PCI-E (6+2) Pin Connector For High-End Graphic Card Requirements.

• 80 PLUS Platinum Certified, 90% 92% 89% Efficiency At 20% 50% 100% Rated Load
• Tight Voltage Regulation (12 V, 5 V and 3.3 V) [± 0.5%]
• Cybenetics Platinum Certified, 89% & <91% overall efficiency (115 INPUT), 91% & <93% overall efficiency (230 INPUT)
• Intel ATX 3.0 Certified: Compliant with ATX 3.1 standard & PCIe Gen 5 ready and 16-Pin PCIe Gen 5 Cable (12V-2x6), resisting transient power spikes.
• Full modular design with all ribbon cables to maximize flexibility
