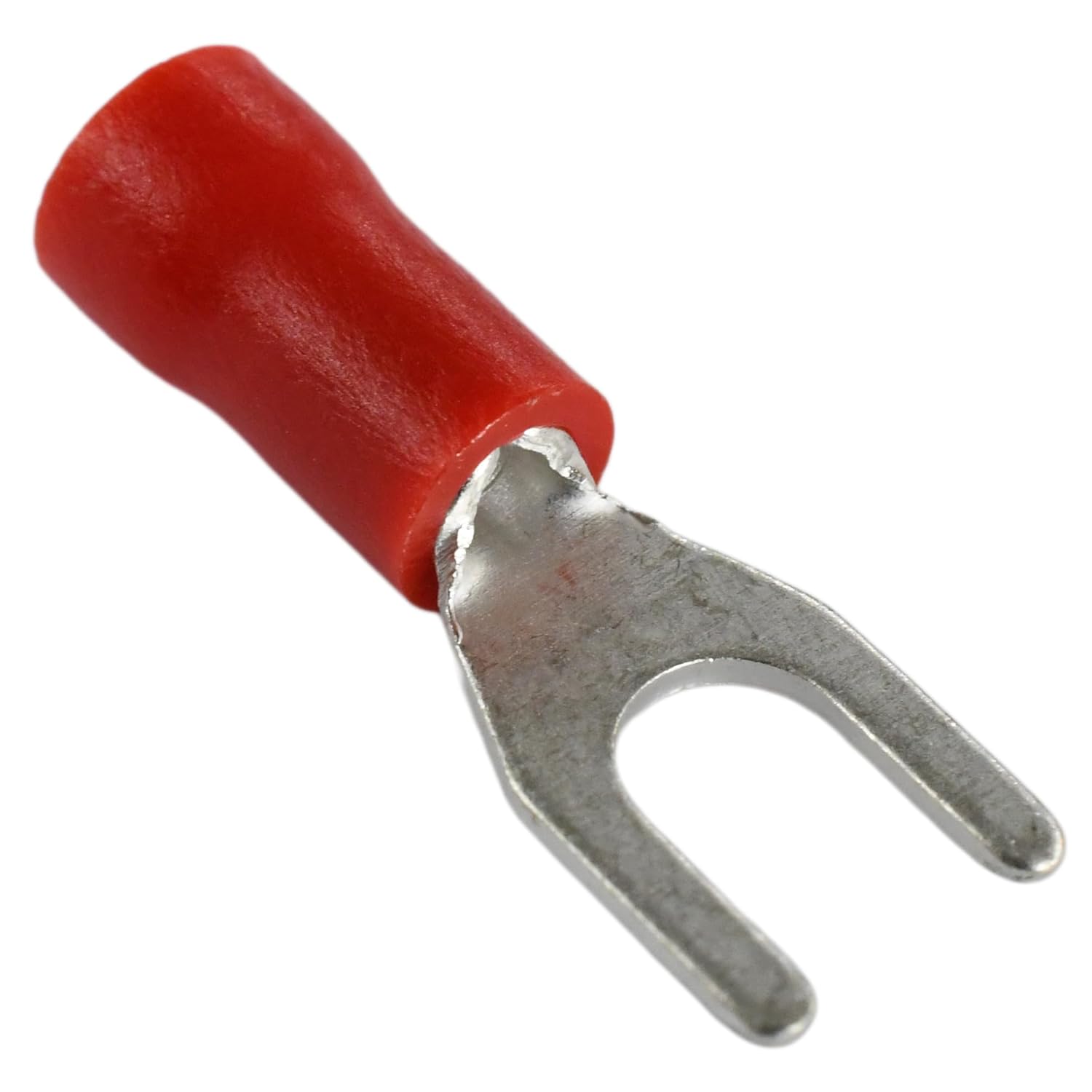

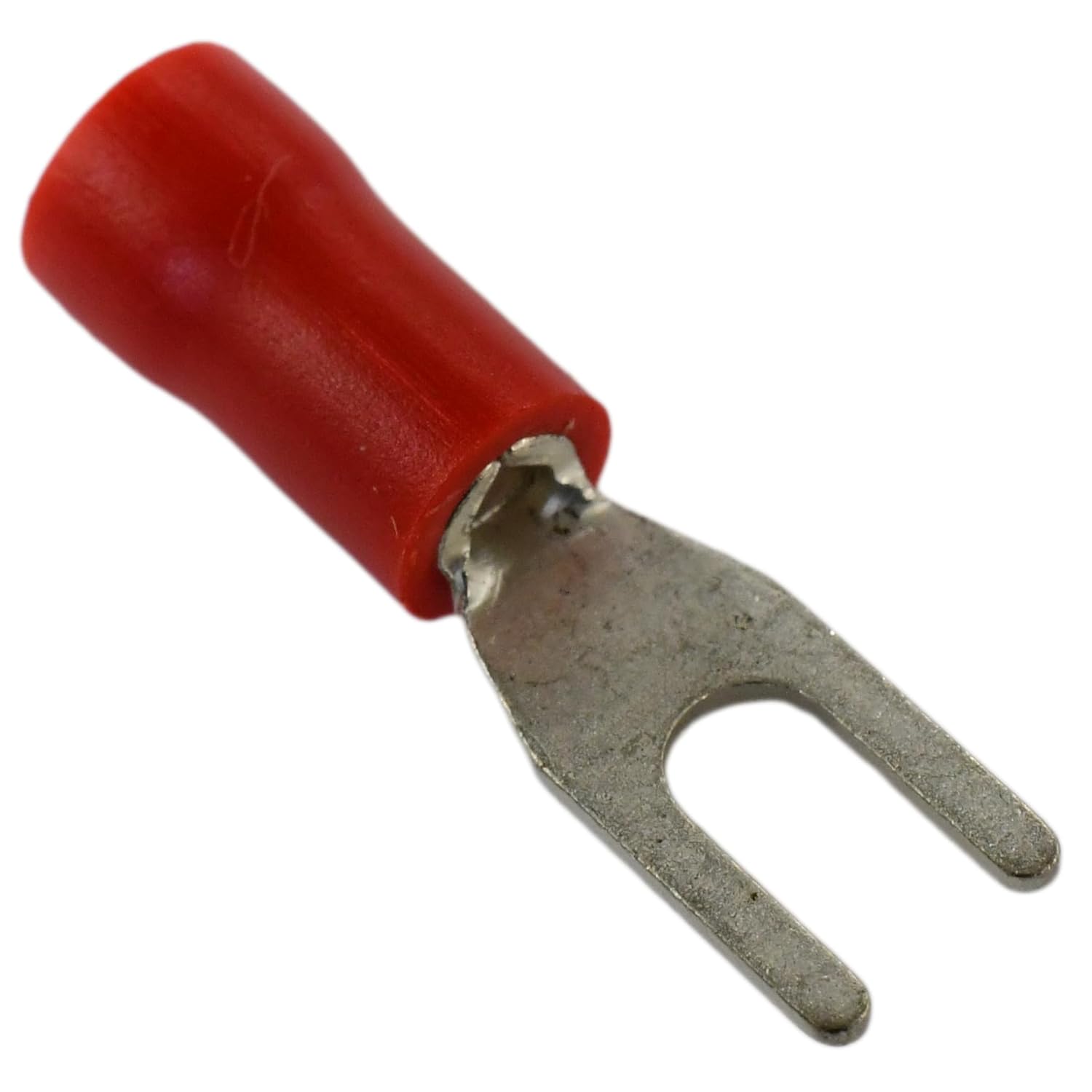

PAPUGA 1000PCS 20-16 AWG #6 / M3.5 Narrow Version Insulated Fork Spade Crimp Connector, 600V 19A, UL cUL Power Lug for Inverter Solar & Marine Wiring, Battery & Power Wiring
4.2 (137 items)
Limited Time SaleUS$29.99 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 215630865 | Release Date | 2026/04/12 | List Price | US$20.00 | Model Number | 215630865 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
PAPUGA 20–16 AWG (0.5–1.5 mm2) UL-Rated Insulated Fork (Spade) Crimp Connector Electrical Rating: 600V / 19A Max | Certification: UL & cUL Listed – File E357535 Bolt Size: #6 / M3.5 Fork Width: Narrow This 20–16 AWG insulated fork (spade) connector is designed for reliable, serviceable electrical connections in automotive, marine, appliance, electronics, and control-panel wiring. The fork design allows installation and removal without fully removing the screw or bolt, making maintenance faster and easier. Manufactured from Tin-Plated Copper, this connector provides consistent electrical conductivity and corrosion resistance. It is intended for use with 20–16 AWG stranded copper wire only and is rated for 19A at up to 600V. The connector features Red PVC Vinyl (75C) to help reduce short circuits, vibration, and abrasion. The insulation may be removed if required for specific applications. Crimping Instructions (Important): With insulation installed, use a crimping tool designed for insulated terminals If insulation is removed, use a crimping tool designed for bare (non-insulated) terminals Always perform a tug test after crimping to confirm a secure connection. Common Applications: Automotive wiring, marine systems, appliances, control panels, electronics, robotics, machinery, and general electrical installations.Fit & Installation Note: Before ordering, confirm the selected wire gauge and connection size match your application. Designed for stranded copper wire and proper crimping tools only.✔ FIT & USE CONFIRMATION Matches the selected wire gauge and connector size shown above Designed for stranded wire and proper crimping tools Disconnect power before installation for safety
- WIRE SIZE: Fits 20-16 AWG stranded wire.
- STUD SIZE: Fits #6 bolts for secure mounting.
- MATERIAL: Tin plated copper for corrosion resistance and reliable conductivity.
- SECURE CONNECTION: Closed-ring design resists vibration loosening in automotive, marine, and power applications.
- INSTALLATION: Can be crimped with insulated-terminal tools, or insulation may be removed for use with non-insulated crimpers. Disconnect power before working.
| Color | Red |
|---|---|
| Gauge | 16 |
| Terminal | Spade Terminal |
| Stud Size | #6, 3.5mm, M3.5 |
| Brand Name | Generic |
| Unit Count | 1.0 Count |
| Manufacturer | TAIXING LONGYI TERMINALS CO |
| Material Type | Copper, Polyvinyl Chloride |
| Connector Type | Fork, Spade |
| Maximum Voltage | 600 Volts |
| Contact Material | Plated Tin |
| Specification Met | UL, cUL, cULus |
| Temperature Rating | 75°C |
| Included Components | 1000 × 20-16 AWG insulated fork spade crimp connectors (#6 / M3.5) |
| Insulation Material Type | Polyvinyl Chloride |
| Item Dimensions L x W x H | 0.86"L x 0.22"W x 0.16"H |
