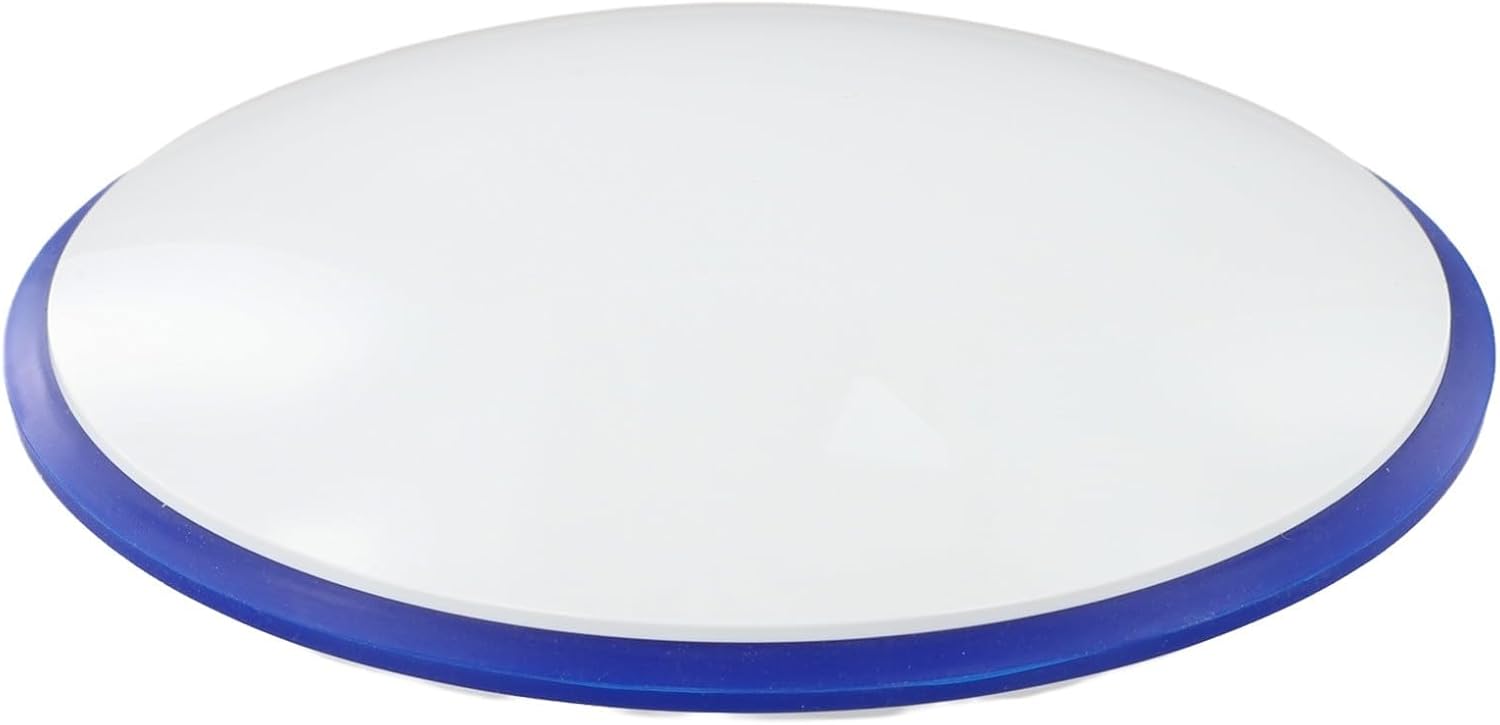

High-Precision Multi-Band GNSS GPS Antenna Supports GPS GLONASS Beidou For Galileo Compatible With AG15 AG25 AG35 For Agricultural And Construction Use

Features:High-precision GNSS antenna, supporting four major global navigation systems: GPS, GLONASS, BDS and for Galileo, and supporting GPSL1, L2, GLONASS G1, G2, Beidou B1, B2, B3 and for Galileo E1, E5b. This antenna features high gain, good low-elevation gain, large circular polarization Angle and stable phase center. It is suitable for high-precision surveying and mapping and is widely used in automated agriculture, geodesy, road construction, surveying, container operations at ports and other occasions. The new GO100 features a high-strength ABS housing and a waterproof design, which can significantly extend the antenna's service life.The antenna part adopts a multi-feed point design to for ensure that the phase center coincides with the geometric center, minimizing the measurement error caused by the antenna to the greatest extent.This antenna unit features high gain and a wide beam pattern, receives signals at a low elevation Angle, and can still search for stars normally under some severe obstructions.Resistant to high and low temperatures, waterproof and covered, it provides for protection for the antenna during long-term outdoor operation.Specification:Part Name: GNSS AntennaMaterial: ABS, metalColor: As shown in the pictureOperating frequencies: GPSL1/L2, BeiDouB1/B2/B3, GLONASSG1/G2, for GalileoE1/E5bPolarization type: RHCPImpedance :50ΩHorizontal coverage Angle: 360°Output standing wave ratio: ≤1.5Antenna AR:≤3dBPhase center error: ≤2mmLow-noise specificationsFor LNA gain: 40±2dBNoise figure: ≤1.5dBOutput standing wave ratio: ≤1.5Operating voltage: +3V to +15VWorking current: ≤45mAConnector :TNC-KAntenna size (mm) : Ф150mm×63.7mmWeight (g): 380gWorking environmentOperating temperature (℃) : -40℃ to +70℃Storage temperature (℃) : -55℃ to +85℃Waterproof rating: IPX67Package content:1 x GNSS antenna

• High-Precision GNSS GPS Antenna: Designed for multi-band reception including GPS, BDS, GLONASS, and for Galileo, supporting GPSL1/L2, BeiDouB1/B2/B3, GLONASSG1/G2, and GalileoE1/E5b, perfect for high-accuracy surveying, mapping, and positioning tasks.
• Wide Application Mushroom Head Antenna: Compatible replacement for AG15, AG25, AG35, suitable for automated agriculture, geodesy, road construction, and container port operations, maintaining reliable signal tracking even with low elevation angles or partial obstruction.
• Advanced Multi-Frequency Driving School Examination Difference Capability: Features RHCP polarization, 360° horizontal coverage, ≤2mm phase center error, and high gain with low-noise specs (40±2dB for LNA gain, ≤1.5dB noise figure), boosting measurement confidence.
• Robust Build for Ping Machine Agricultural Positioning: High-strength ABS housing with IPX67 waterproof rating and resistance to -40℃ to +70℃ operation, safeguarding function during extended outdoor use in extreme weather.
• GLONASS Measurement With Stable Output: TNC-K connector, 50Ω impedance, compact Ø150mm×63.7mm size, 380g weight, and wide beam pattern provide consistent, forestall‌ errors, and long lasting performance with minimal maintenance needs.
