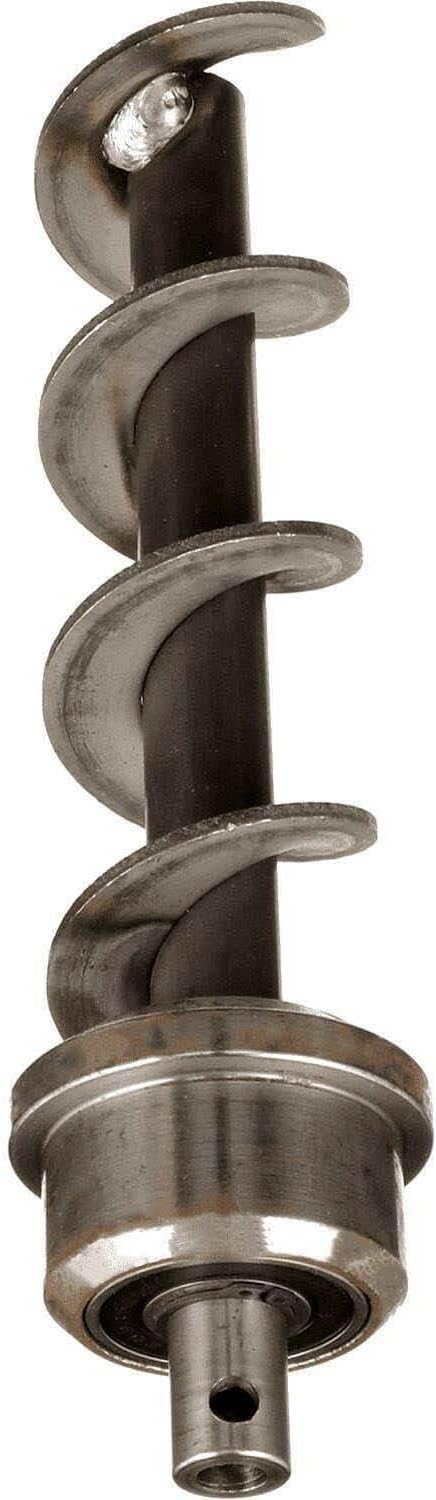

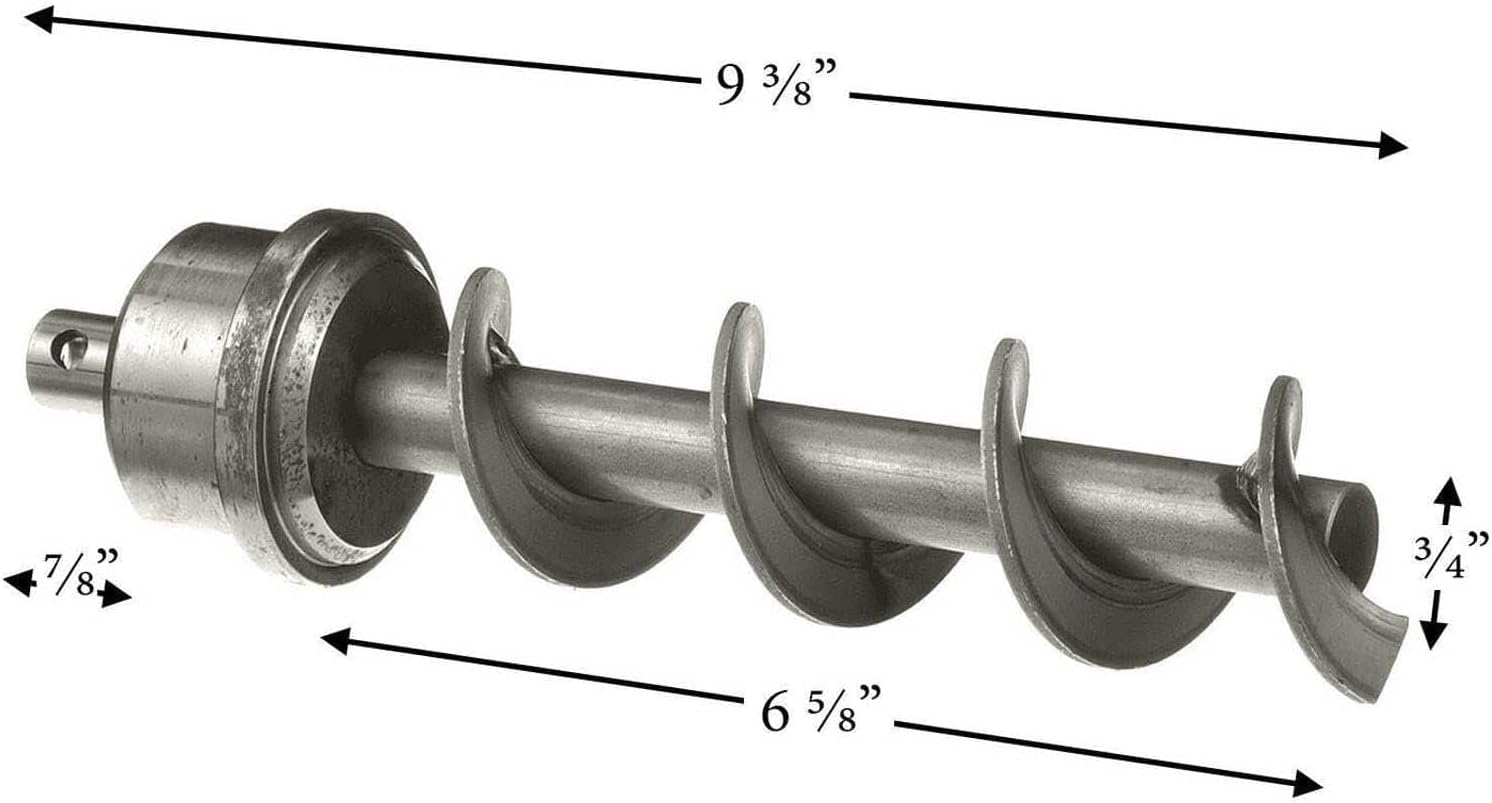

Harman Feed Auger Shaft Assembly: 3-50-00565-SPFL

Please read this section and compare against your stove's serial number to be sure you are getting the correct part! Some models had more than one change. There may be up to three (3) different auger shaft assembly part numbers for some models. Stove and insert models introduced after 2009 all use auger shaft assembly 3-50-00565. Those models are: Accentra52i Accentra52i-TC Absolute43 Absolute43-C P35i P35i-C P43 P43-C Allure50 Absolute63 P61-C Accentra-Cast-C P68-C Models manufactured prior to 2009 phased over to this shaft assembly according to the following serial numbers: Indirect UL Feeder Body Change: Indirect UL Tech Bulletin Dec. 12, 2008 - PDF Accentra-Cast Freestanding - Beginning serial number: 008400001 Advance - Beginning serial number: 0083600001 XXV - Serial numbers: 12871 thru 12939 and beginning 008200001 Direct UL Feeder Body Change: Direct UL Tech Bulletin Dec. 22, 2008 - PDF Accentra Insert - beginning serial number: 008240096 P38 - beginning serial number: 008080620 P61/P61A - beginning serial number: 008085092 P68 - beginning serial number: 008280309 PF100 Furnace - beginning serial number: 008350087 -If you have the Advance, Accentra-Cast (Freestanding- Sometimes referred to as the Accentra2) or XXV and your serial number precedes those listed above, you have the older style indirect feed system (Chain and sprockets). The Auger assembly for your stove (Originally Part# 3-50-00365) is now part # 3-50-00465. -If you have the P38, P61, P61A, P68, or the PF100 Pellet Furnace with a serial number that precedes those listed above, you are going to have the older style large feeder body system, and the correct auger shaft assembly will be 3-50-00465. - Compatible with the Harman Absolute 43, Harman Absolute 43-C, Harman Absolute 63, Harman Accentra 52i, Harman Accentra 52i TC, Harman Accentra Cast FS, Harman Accentra Insert, Harman Advance, Harman HF60, Harman Invincible Insert, Harman Invincible RS, Harman

• Compatible Replacement for Part # 3-50-00565
• Compatible with the Harman Absolute 43, Harman Absolute 43-C, Harman Absolute 63, Harman Accentra 52i, Harman Accentra 52i TC, Harman Accentra Cast FS, Harman Accentra Insert, Harman Advance
• Compatible with the Harman HF60, Harman Invincible Insert, Harman Invincible RS, Harman Invincible T, Harman Magnum (44 Mag), Harman P35i, Harman P35i-C, Harman P38, Harman P38+, Harman P43
• Compatible with the Harman P43-C, Harman P61-A, Harman P61-C, Harman P61A, Harman P68, Harman P68-C, Harman PB105, Harman PC45, Harman Pellet Pro II, Harman PF100, Harman PF120, Harman XXV
• Compatible with the Harman XXV TC
