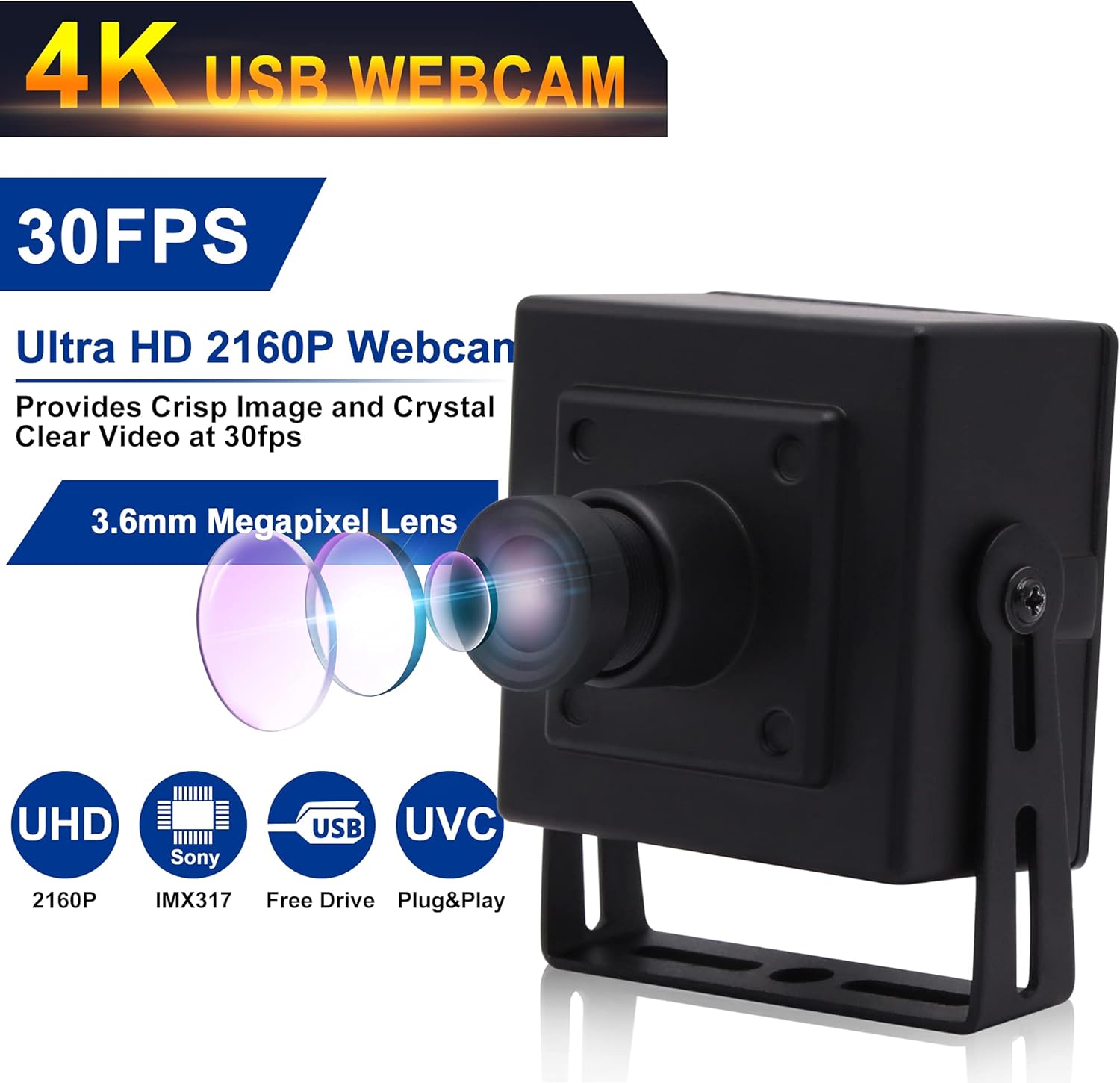

ELP 4K Mini USB Camera with 3.6mm Lens and 3840x2160 HD Resolution for MAC/Windows/Linux/Raspberry Pi
5.0 (108 items)
Limited Time SaleUS$51.60 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 216136218 | Release Date | 2026/04/19 | List Price | US$34.40 | Model Number | 216136218 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- High Quality Imaging: ELP 4k usb camera with metal case adopts high quality 4k 1/2.5” IMX317 sensor for sharp image and accurate color reproduction, still picture resolution: 3840x2160 Max.
- Wide Angle: Mounted a High quality 3.6mm M12 lens with IR filter, provides a wilder Field of View. Horizontal Angle:93°,Vertical Angle:51°.
- With microphone for audio recording: Low power consumption - ideal for portable equipment.Frame Rates: 3840x2160@30fps/2592x1944@30fps/2048x1536@30fps/1600x1200@30fps/1920x1080@30fps
- Plug&Play: UVC compliant, just connect the camera to PC, laptop, Android device or Raspberry Pi with the included USB cable without extra drivers to be installed.
- Applications: ELP 4K usb camera with metal box housing is highly recommended for a home security system, monitoring 3D Printer, Biometric Scanning,Casino Game,KIOSK,or other machine vision applications which demand high resolution.
| Brand | ELP |
|---|---|
| Color | 3.6mm Lens Mini |
| Features | 4K ultra clear, Lightweight, Mini size, built in dual microphone, color |
| Lens Type | Wide Angle |
| Focus Type | Fixed Focus |
| Model Name | ELP-USB4KHDR01-BL36 ELP 4K wide angle usb camera with microphone for computer |
| File Format | MJEPG/YUY2 |
| Form Factor | Compact |
| Item Weight | 0.23 Kilograms |
| Screen Size | 2.5 Inches |
| Sensor Type | CMOS |
| Manufacturer | ShenZhen Ailipu Technology Co., Ltd |
| Model Number | USB4KHDR01-BL36 |
| BuiltIn Media | USB Cable |
| Viewing Angle | 93 Degrees |
| Camcorder Type | Webcam |
| Antenna Location | Home Surveillance, Monitoring 3D Printers, Object Recognition, Biometric Scanning, Casino Games, Kiosks, Machine Vision Applications |
| Maximum Aperture | 2.8 f |
| Operating System | All Windows Server Versions 2000 ELP 4K USB Camera with Audio,Wide Angle UHD 4K USB Webcam, Android ELP 4K USB Camera with Audio,Wide Angle UHD 4K USB Webcam, Linux ELP 4K USB Camera with Audio,Wide Angle UHD 4K USB Webcam, Mac OS 9.X ELP 4K USB Camera with Audio,Wide Angle UHD 4K USB Webcam, Raspberry pi ELP 4K USB Camera with Audio,Wide Angle UHD 4K USB Webcam |
| Video Resolution | 4K |
| Flash Memory Type | Micro SD |
| Photo Sensor Size | 1/2.5-inch |
| Compatible Devices | Android phones ELP 4K USB Camera with Audio,Wide Angle UHD 4K USB Webcam with Metal Case,IMX317 3840X2160 30fp 4K mini USB Camera with 3.6mm Lens, Linux ELP 4K USB Camera with Audio,Wide Angle UHD 4K USB Webcam with Metal Case,IMX317 3840X2160 30fp 4K mini USB Camera with 3.6mm Lens, Mac ELP 4K USB Camera with Audio,Wide Angle UHD 4K USB Webcam with Metal Case,IMX317 3840X2160 30fp 4K mini USB Camera with 3.6mm Lens, Raspberry Pi ELP 4K USB Camera with Audio,Wide Angle UHD 4K USB Webcam with Metal Case,IMX317 3840X2160 30fp 4K mini USB Camera with 3.6mm Lens, Window ELP 4K USB Camera with Audio,Wide Angle UHD 4K USB Webcam with Metal Case,IMX317 3840X2160 30fp 4K mini USB Camera with 3.6mm Lens |
| Image Aspect Ratio | 16:9 |
| Image stabilization | Optical |
| Maximum Focal Length | 200000 Millimeters |
| Video Capture Format | MJPEG/YUY2 |
| Warranty Description | 30days free return and replacements, 90 days free repair, 1 year guarranty. |
| Wireless Compability | Infrared |
| Exposure Control Type | AEB, AEC, Automatic |
| Are Batteries Included | No |
| Supported Audio Format | PCM, AAC |
| Supported Image Format | JPEG |
| Water Resistance Level | Not Water Resistant |
| Connectivity Technology | USB |
| Has Image Stabilization | No |
| Flash Memory Speed Class | C10 |
| Upper Temperature Rating | 6E+1 Degrees Celsius |
| Item Dimensions D x W x H | 1.5"D x 1.5"W x 0.9"H |
| Display Resolution Maximum | 4K UHD |
| Effective Still Resolution | 8 MP |
| Effective Video Resolution | 2160 Pixels |
| Flash Memory Video Speed Class | V60 |
| Flash Memory Bus Interface Type | SD |
