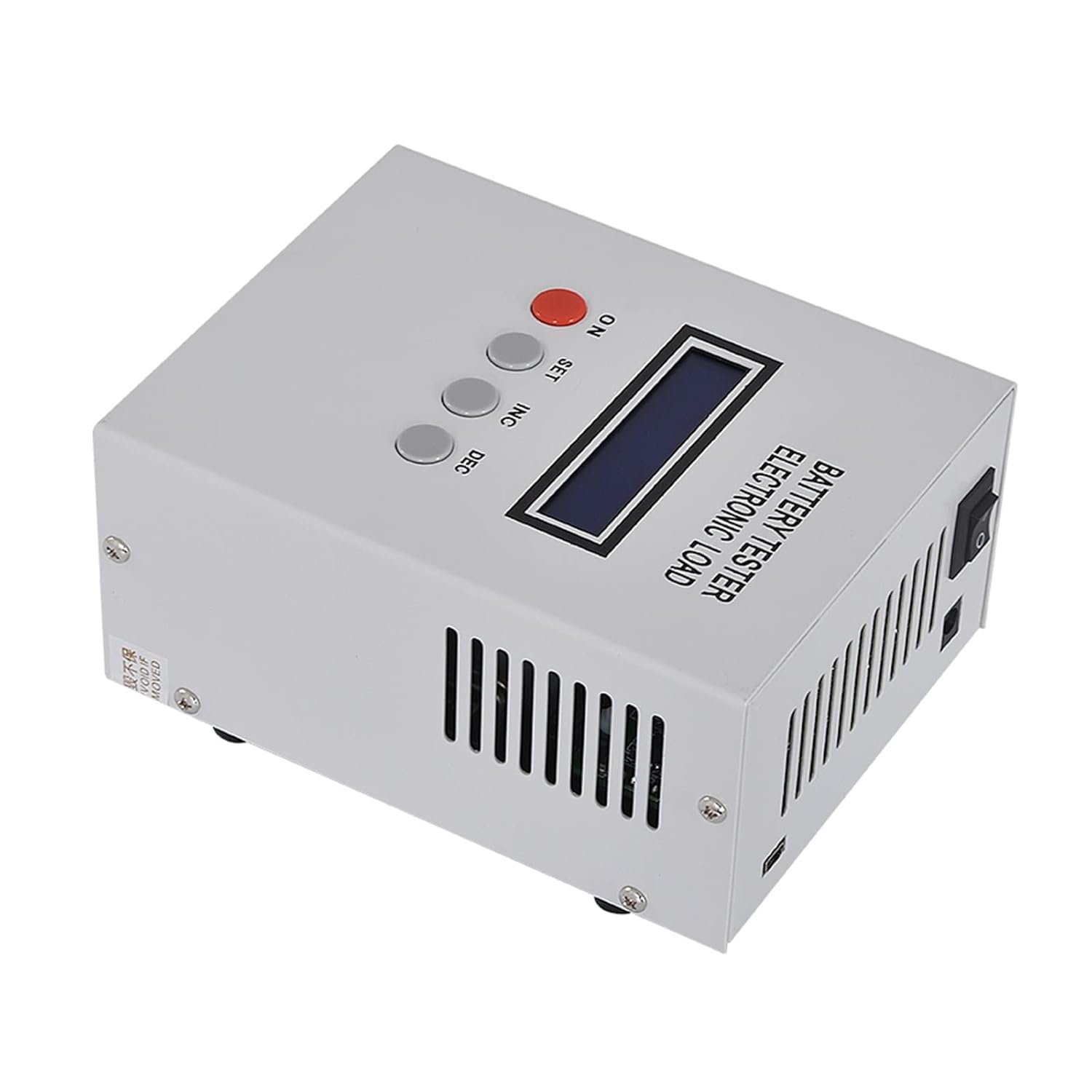

EBC-A20 Battery Tester 30V 20A 85W Lithium Lead-Acid Batteries Capacity Test 5A Charge 20A Discharge Support PC Software Control High Precision
4.3 (139 items)
Limited Time SaleUS$91.96 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 215110245 | Release Date | 2026/04/12 | List Price | US$61.31 | Model Number | 215110245 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specification:Name: EBC-A20 Battery TesterCharging voltage: within 18VDischarge voltage: within 30VMaximum discharge power: 85WPacking size: 28*24*15cmWeight: 1.8kgVolume weight: 2.02kgEBC-A20 is a battery tester with charge and discharge function. It is suitable for lithium battery/leadacid capacity test (charge 5A, discharge 20A, high power 85W), support separate charging, dischargingand charge and discharge test, support connection The computer can be recharged and refilled multipletimes with online software and has more extended functions.Note:The battery is not included.ParameterPower supply mode: DC 19V-24V, current 3.5A or moreVoltage setting: 0.00-30.00V, minimum step 0.01V(maximum voltage during charging is 18V)Current setting:Discharge: 0.10-20.00A, minimum step 0.01A (automatic current limit when power exceeds limit)Charging: 0.10-5.00A, minimum step 0.01A (maximum current limited by supply current)Discharge mode:DSC-CC: constant discharge current, used to test battery capacityDSC-CP: constant discharge power, used to simulate constant power equipmentCHG-CV: constant current and constant voltage charging, supporting lithium battery and lead acidAutomatic charge and discharge: support automatic "charge-discharge-charge" mode, test battery capacityVoltage measurement:0.000-4.500V (low pressure), accurate to 0.003V, error +-0.5%4.50V-30.00V (high pressure), accurate to 0.01V, error +-0.5%Current measurement:0.10-20.00A, accurate to 0.01A, error +-0.5%Capacity measurement:Within 10Ah, resolution 0.001Ah10Ah-100Ah, resolution 0.01AhAbove 100Ah, resolution 0.1Ah
- Wiring method: four-wire detection, voltage measurement and current channel separate wiring to ensure Measurement accuracy
- LCD display: test data of voltage, current, capacity, time, power, energy, etc.
- Computer connection: dedicated USB to TTL serial cable.
- Computer control, drawing curves, calibrating measurement benchmarks, upgrading device firmware,
- Cycle charging and discharging, etc.
| Brand | BLAQGFO |
|---|---|
| Color | One Color |
| Style | One Style |
| Item Weight | 3.31 pounds |
| Manufacturer | BLAQGFO |
| Power Source | Battery Powered |
| Specification Met | UL |
| Package Dimensions | 0.39 x 0.39 x 0.39 inches |
