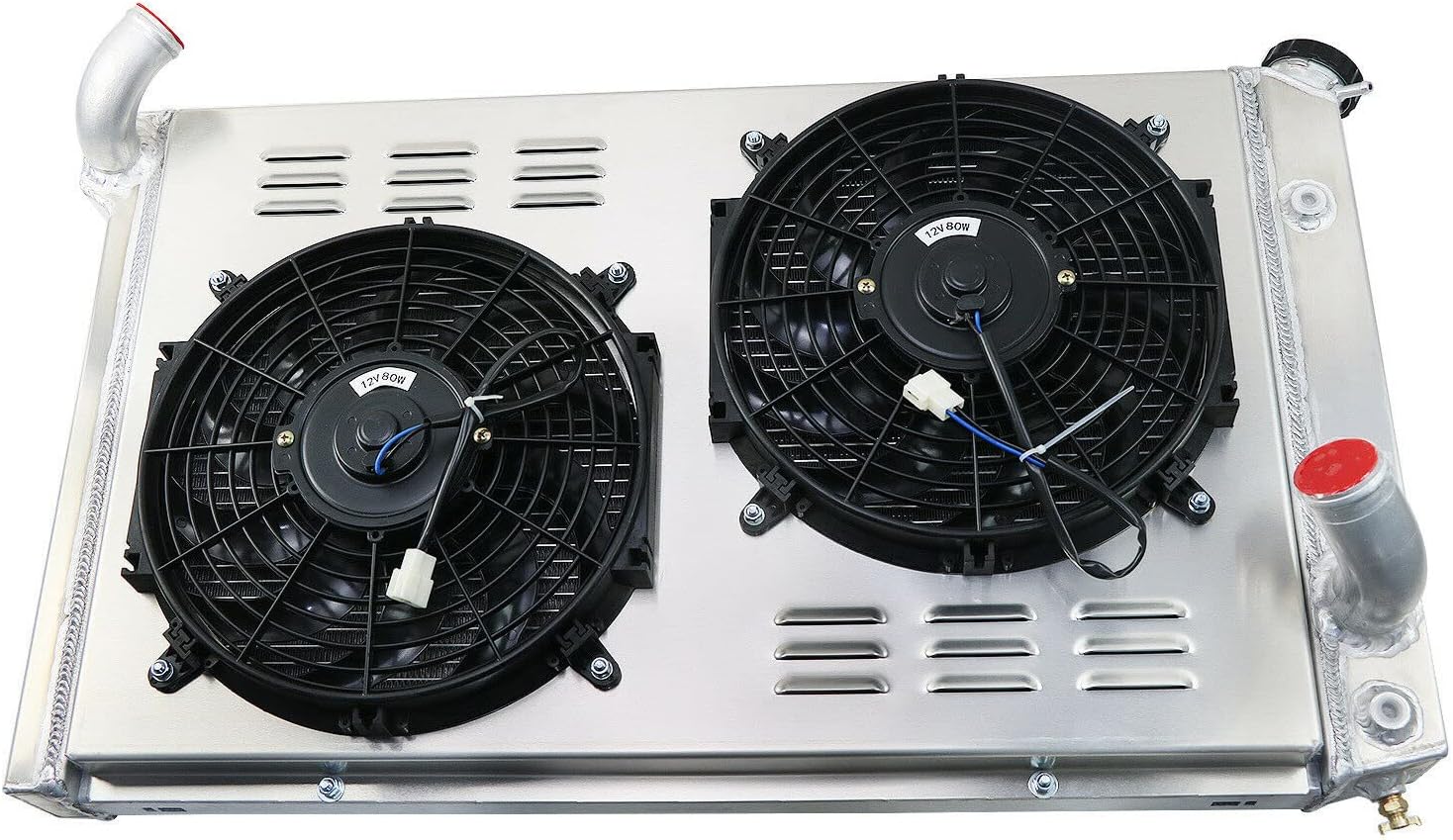

ALLOYWORKS 3 Row Radiator & Shroud Fan & + Relay Kit For 1973-1976 Chevy Corvette Stingray C3 V8 5.7L 7.4L

Package Include:1 X 3 Row ;AA5052 Aluminum Radiator1 X CNC Machined Radiator Cap1 X AA5052 Aluminum Shroud2 X 12" Fans (Includes mounting kits)1 X Thermostat Relay Kit Radiator Size:Condition:NewHigh Performance Racing Spec.3 Row of tubes Core Racing DesignPetock Drain:OEM style brass petcock drainCore Size: 27 1/2" Width x 16 3/4" Height Overall Size: 33 1/2" Width x 19 1/2" HeightUpper Inlet: 1 1/2" located on the driver sideLower Outlet: 1 3/4" located on the passenger sideTransmission Oil Cooler: G1/4(Z)Please Check the Size Before You Buy! Vehicle FitmentFor 1973-1976 Chevy Corvette Base Stingray V8 5.7L 7.4L FANS:Volt :12vMaximum Fan CFM: 1730 cfmFan Diameter (in): 12.050”Thickness (in): 2.500”Number of Blades: 10 bladesMaximum Fan RPM: 2,250 rpmBlade Material: PlasticAmp Draw: 12.70 ampsIncludes the Mounting Tabs for an Easy Zip Tie Installation Thermostat Kit:Universal fit for any automotive vehicle and electric fan.Activates by grounding electric fans at preset temperature.180'F turn-on temperature, 165'F turn-off temperature.Probe typically threads into radiator, water outlet or manifold.RED + connect directly to battery.WHITE wire to ignition switch power source.BLACK goes to thermos switch.BLUE wire goes to the Fans.

• ◆ For 1973-1976 Chevy Corvette Base Stingray V8 5.7L 7.4L;
• ◆ Improves cooling by 35% to 45% temperature
• ◆ Made of high quality full AA5052 aluminum construction
• ◆ Stronger and higher capacity for coolant than stock units
• ◆ Only the highest grades of materials are used for ALLOYWORKS to ensure our product longevity!
